ML9
Stairlift - ML9 - when space is limited
If you need a lift but have limited space, then ML9 is the solution for you.
An easy and simple solution
The ML9 model offers a simple and easy solution which can be installed withouth major renovations of existing structures or interior. The ML9 lift is designed to make your day to day life easier and more accessible.
Platform lift for minimal space requirement

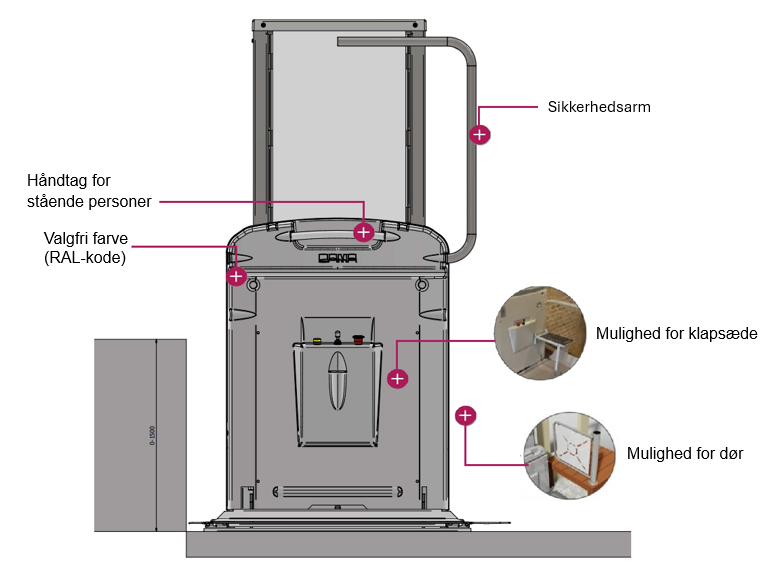

The ML9 platformlift consist of a lift wagon with a foldable platform aswell as a vertical tower which contains the motor. When the lift is not being used it can be folded significantly reducing the space it occupies, making the ML9 ideal for locations with limited space.
Specifications:
- Load: 300 kg.
- Travel: 0-1500 mm
- Speed: *0,04 m/s
- Driving motor: 300w, 24V
- Platform motor: 24 V
- Barrier-arm motor: 24 V
- Electric supply: 1 phase, 200-260V, AC max: 10A
- Supply : Charger: 200-260V, AC – Lift: 24V DC
- Driving mechanism: Lead screw linear drive with nut
- Construction: Steel
*Speed is reduced by weight.
Dimensions:
- Tower: 680×147 mm.
- Tower 0-1000: 1962 mm.
- Tower 0-1500: 2462 mm.
- Width folded up: *380 mm.
- Width folded out: *1130 mm.
- Platform standard size: 1000×800 mm.
- *Standard platform, wall-mounted.
Safety details:
- Brake
- Limit switch
- Thermal overload relay.
- Overspeed governor and brake.
- Manual emergency raising of barrier arms and platform
- Emergency lowering system
- Active surfaces that stops the lift when it runs into an obstacle.
What does the complet ML9 package contain?
When you order an ML9 platform lift from us, you get a solution that includes:
- Emergency lowering device for extra safety
- Individual adjustments and great flexibility in sensitive environments
- Optional color choices to match your decor
- Possibility of installation both indoors and outdoors
- Platform flaps and base plate with a cut-off function in case of pinching hazard
- Minimal space requirement
- A smooth and comfortable ride
Recieve a free non binding offer
If you wish to receive a price on a ML9 lift, contact us to receive a non binding offer. We are glad to answer any questions you have regarding our lifts and help you find the best solution for your needs.
Contact us on telephone: 98 43 01 22 or email: pje@cama.dk. We are looking forward to helping you find the perfect lift solution!
