EA6

Handi lift EA6

If you are looking for a stairlift that can be customized for stairs with turns and flat sections, the EA6 is the perfect choice for your needs. This stair lift was designed to match any set of stairs, regardless of length and width and it can be seamlessly integrated into any decor without the need for major reconstruction.

Unique design and flexibility

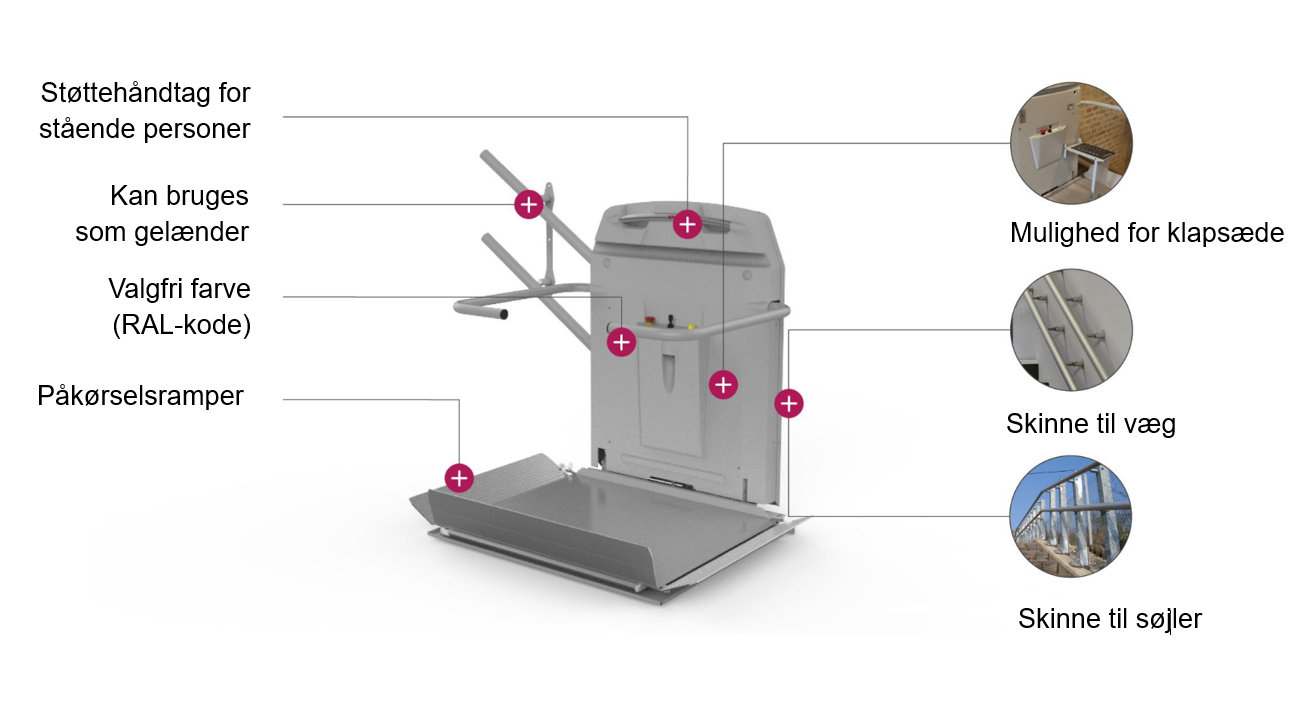

The stairlift is equipped with an aluminum rail system that also functions as an elegant handrail, making it both functional and aesthetically pleasing. The Handi-Lift travels along the inner curve of the stairs and can turn both 90 and 180 degrees, making it ideal for curved stairs and landings. With safety arms and flaps on both the front and back edges of the platform, it ensures maximum safety during use.

High usability and safety

The Handi-Lift is battery-powered, eliminating the risk of power outages and unsightly cables. It comes as a fully automatic lift, with automatic platform and safety arms operation. Additionally, it can be controlled by remote, significantly enhancing user-friendliness.

Specifications:

Load: 225 kg. or 300 kg.
Travel: From 0 to 50 degrees slope
Speed: *0,1 m/s (reduced in the curves)
Driving motor: 300w 24V.
Platform motor: 24 v.
Barrier-arm motor: 24 V
Electric supply: 1 phase 200-260V, AC max: 10A
Supply: Charger: 1 phase 200-260V AC
Lift: 24V DC
Driving mechanism: Rack with overspeed governor.
Construction: Steel- and aluminium rails on the wall or on columns.

*Speed is reduced by weight and slope.

Dimensions:

Rail: Ø50 mm.
Width folded up: *395 mm.
Width folded out: *1130 mm.
Platform standard size: 1000×800 mm.

*Standard platform, wall-mounted.

Safety details:

Overspeed governor and brake.
Limit switch
Weight sensor
Manual emergency raising of barrier arms and platform
Emergency lowering system
Active surfaces that stops the lift when it runs into an obstacle.

Customized adjustments and outdoor use

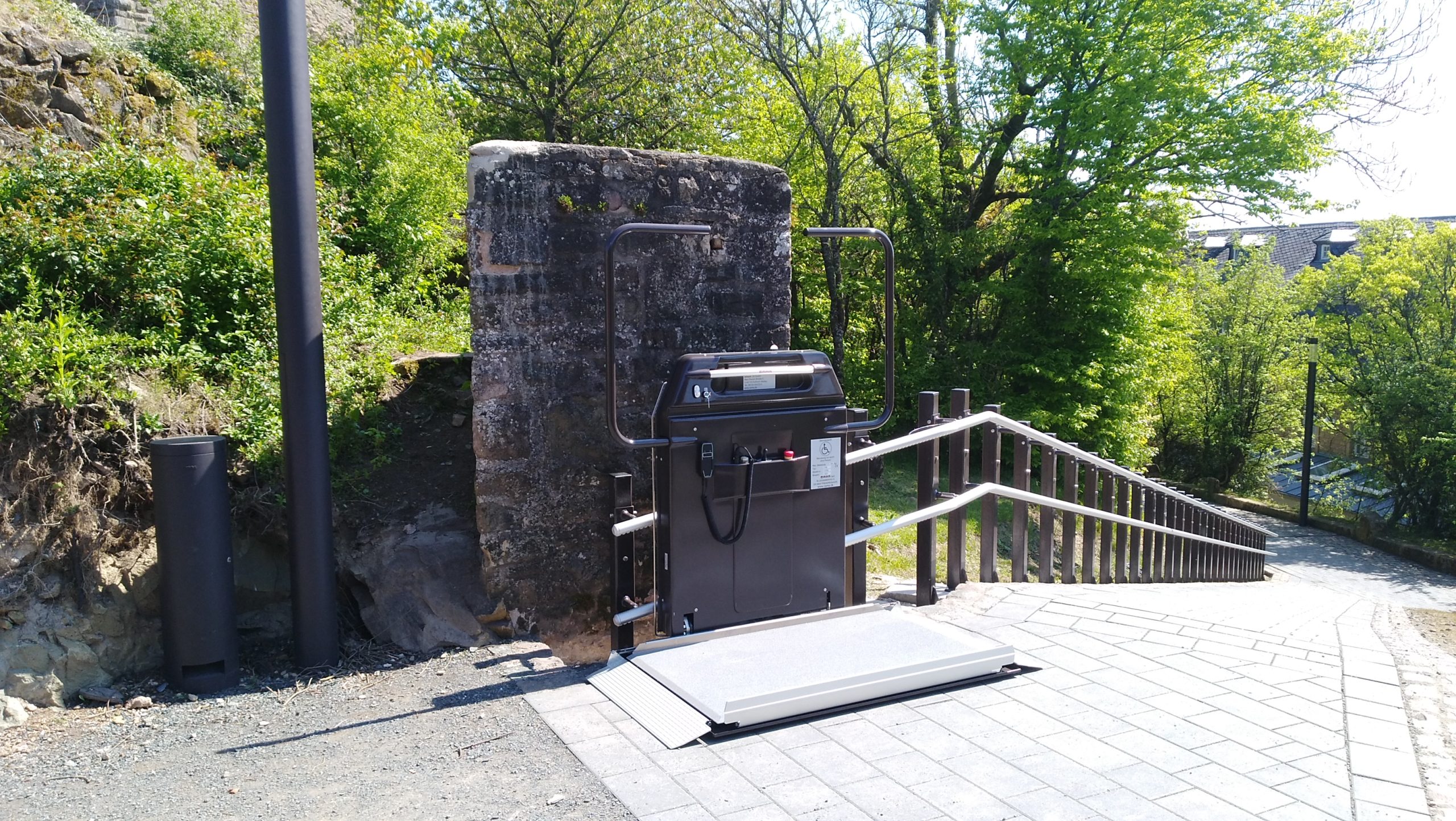

With standard dimensions of 1000×800 mm, the platform can be adjusted to specific staircase or wheelchair dimensions. The EA6 stairlift is also suitable for outdoor use, making it extremely versatile.

Handi-Lift EA6 - The stairlift for every Situation

Choose the Handi-Lift Type EA6 for a customized stairlift that combines flexibility, safety, and aesthetics.
